Description
metal gear servos MKS HV6100 Metal Gear Mini Glider Wing Servo (High Voltage)MKS Servos HV6100 Metal Gear Mini Glider Wing Servo (Wide Voltage) MKS Servos HV6100 Metal Gear Mini Glider Wing Servo (Wide Voltage) The MKS HV6100 Metal Gear Mini Glider Wing Servo is perfect for discus launch, hand launch, 2M flap, and F3K V tail glider applications that require a precise wing servo with low power consumption and superior holding torque, combined with the flexibility of high voltage circuitry. Specifications: Torque: @6. 0V: 36. 1

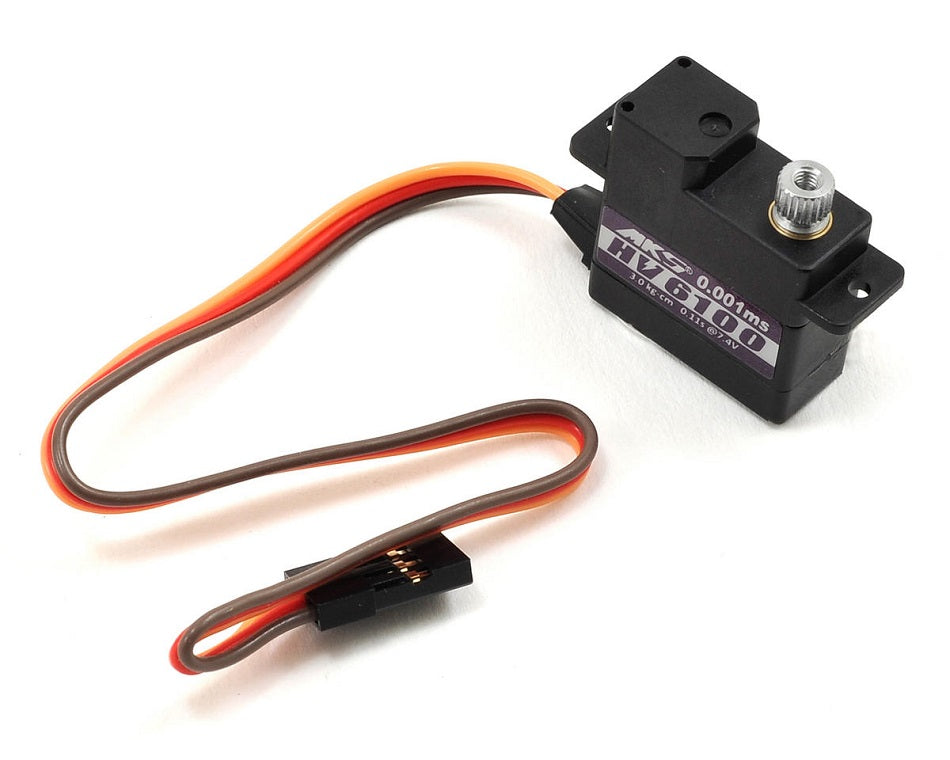

MKS Servos HV6100 Metal Gear Mini Glider Wing Servo (Wide Voltage)
MKS Servos HV6100 Metal Gear Mini Glider Wing Servo (Wide Voltage)
The MKS HV6100 Metal Gear Mini Glider Wing Servo is perfect for discus launch, hand launch, 2M flap, and F3K V-tail glider applications that require a precise wing servo with low power consumption and superior holding torque, combined with the flexibility of high voltage circuitry.
Specifications:
- Torque:
- @6.0V: 36.1 oz-in (2.6 kg-cm)
- @7.4V: 41.6 oz-in (3.0 kg-cm)
- @8.2V: 47.2 oz-in (3.4 kg-cm)
- Speed:
- @6.0V: 0.14s
- @7.4V: 0.11s
- @8.2V: 0.10s
- Weight: 10g
- Dimension: 22.5x10x23.5mm
- Working Voltage: 3.8 ~ 8.4 V DC Volts (2S LiPo unregulated)
- Working frequency: 1520μs / 333hz
- Dead Band: 0.001 ms (Default)
- Bearing: 2 Jewel Bearings + 1 Bronze Bushing
- Motor: Coreless Motor
- Gear: Metal + Aluminum Magnesium alloy gears
- Note: The output spline gear size is 4MM. We sell a compatible Aluminum servos arm that fits this servo.
